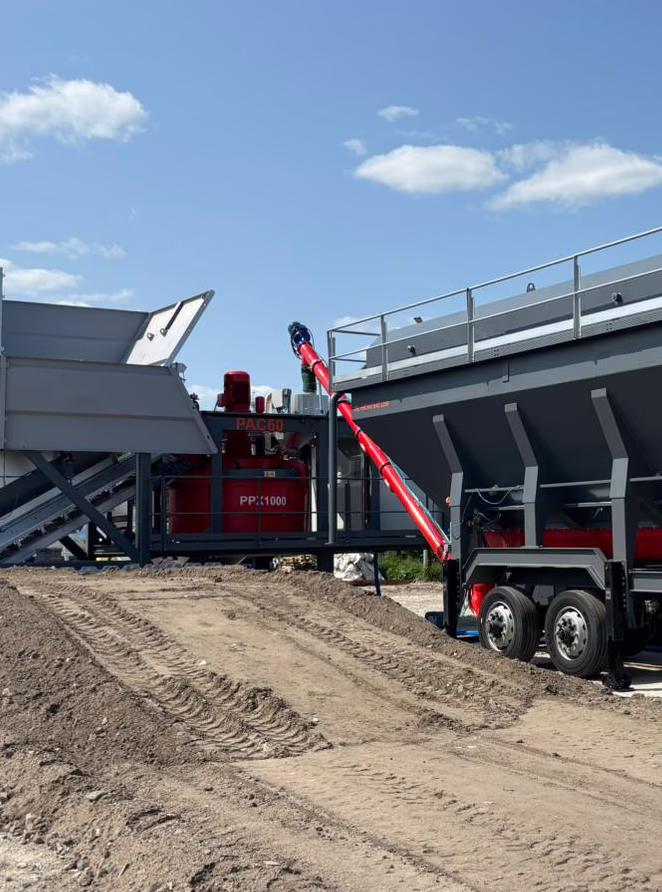

Polygonmachine PCC Series Compact Concrete Batching Plants are developed to combine high production performance with mobility and space efficiency.
Designed for medium-scale projects and ready-mix applications, the PCC Series offers the reliability of stationary systems and the flexibility of mobile units — all in one compact structure.
Why choose Polygonmachine?
Polygonmachine delivers certified quality (TSE & ISO 9001), global expertise, and durable solutions from 30 m³/h to 240+ m³/h. Polygonmachine is a trusted partner in both compact and large-scale projects.
What batching plant types are available?
Stationary, mobile, and compact plants—plus cement silos, feeders, and dosing units. Every system is customizable to match your space, capacity, and automation needs.
How is long-term support handled?
Polygonmachine ensures fast setup, training, and after-sales service, minimizing downtime. All plants include modern automation and safety features for easy, efficient use.
Technical Specifications
| Model | Capacity (m³/h) | Mixer Type | Mixer Capacity (m³) | Power (kW) | Aggregate Weighing (kg) | Cement Weighing (kg) | Water Weighing (lt) | Additive Weighing (lt) |
|---|
| PCC-30 | 30 | Planetary / Pan | 0.5 | 22 | 1,500 | 300 | 150 | 15 |
| PCC-60 | 60 | Twin Shaft / Planetary | 1.0 | 45 | 3,000 | 600 | 300 | 20 |
| PCC-90 | 90 | Twin Shaft | 1.5 | 55 | 4,500 | 900 | 450 | 30 |
Key Features
Compact Modular Design:
All components — aggregate bins, mixer, weighing systems, and control unit — are assembled on a single chassis, minimizing installation space and civil requirements.
Fast Setup and Relocation:
Pre-assembled structure enables installation within hours, reducing transport and commissioning time.
Precision Automation System:
Equipped with PolySmart™ PLC for automated weighing, mixing, and data recording, ensuring consistent concrete quality and dosing accuracy.
Durable Mixer Options:
Twin-shaft, planetary, or pan mixers available for a wide range of concrete applications, from standard ready-mix to precast elements.
Integrated Weighing and Feeding System:
Aggregate, cement, water, and additives are measured with high accuracy for uniform batch consistency.
Low Maintenance Design:
Easy-access service platforms, wide maintenance doors, and durable mechanical components extend operational lifespan and reduce downtime.
Energy-Efficient Operation:
Optimized drive systems and intelligent batch control minimize power consumption during continuous production.
Performance
Production Range: 30–90 m³/h
Setup Time: <1 day
Mixing Accuracy: ±1% aggregates, ±0.5% liquids
Batch Cycle Time: 60–75 seconds
Automation: PolySmart™ PLC + Touchscreen HMI
Power Consumption: 0.35–0.55 kWh/m³
Applications
Urban Construction Projects: Compact structure ideal for limited-space operations.
Ready-Mix Production: Reliable for mid-scale concrete supply operations.
Infrastructure Works: Roads, bridges, and small-to-medium civil engineering projects.
Precast Concrete Plants: Consistent mix control for high-quality structural components.
Advantages
Combines mobility and capacity in one compact structure
Quick setup and easy relocation
Fully automated operation with advanced weighing precision
Low energy consumption and maintenance requirements
Ideal for tight-space production areas or limited job sites
How quickly can a compact plant be installed?
Installation can be completed within 1–2 days due to the modular, pre-wired design and minimal foundation needs.
FEATURES
Twin-Shaft or Planetary Mixer
Ensures fast, uniform mixing in compact footprint.
Pre-Wired Modules
Reduces setup time and eliminates complex site installations.
Integrated Silos
Vertical or horizontal options depending on capacity and site needs.
Control Cabin
PLC/HMI-based, compact, and user-friendly.

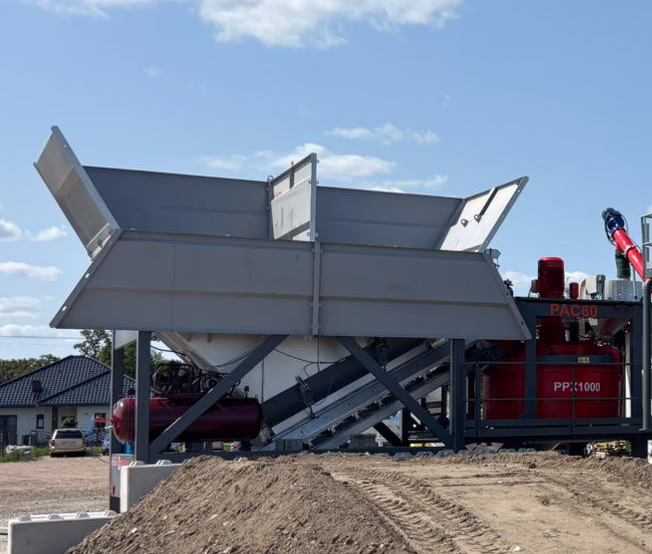

Aggregate Bins
Modular, easily fed by loader or skip.
OPTIONS
Moisture Probes
Automatically adjust water content based on aggregate humidity.
Remote Monitoring
Access and operate the plant via mobile or desktop.
Additional Silos or Additive Tanks
For extended operation or special concrete types.
Enclosure Kits
Insulated panels for operation in cold or harsh climates.
Integrated Generator Option
For off-grid or mobile job sites.
OPERATION TIPS
Plan Level Grounding
Ensure the site is leveled and compacted for safe operation.
Calibrate Regularly
Run routine checks on scales, moisture probes, and flow meters.
Protect Electronics
Use climate-controlled cabins and surge protection for PLCs.
Inspect Mixer Blades
Monitor wear and buildup weekly for consistent output.
Clean at End of Shift
Flush systems and discharge points to prevent hardened residue.
