POLYGON MACHINE
ON-SITE MOBILE AND STATIONARY
CONCRETE BATCHING PLANTS

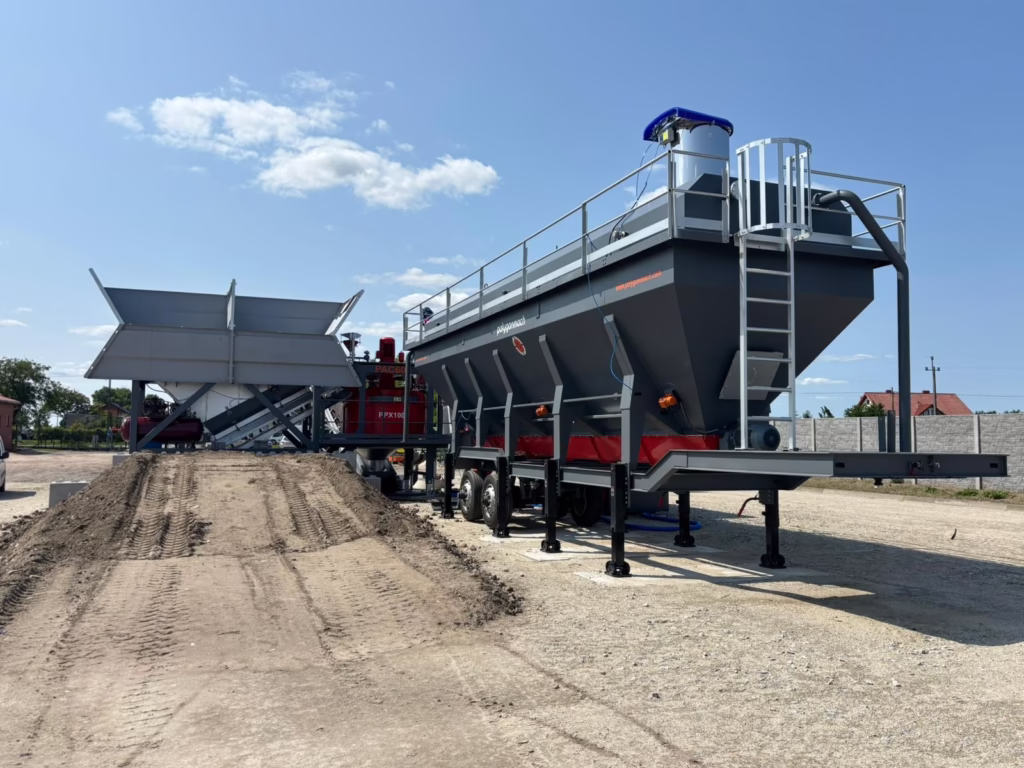

Polygonmachine PAC Series On-Site Mobile and Stationary Concrete Batching Plants are engineered to deliver high-quality concrete directly at construction sites, combining flexibility, mobility, and industrial-grade performance.
Designed for major infrastructure projects and remote locations, the PAC Series provides fast installation, easy operation, and consistent output in both mobile and stationary configurations.
Why choose Polygon Machine?
Polygon Machine delivers certified quality (TSE & ISO 9001), global expertise, and durable solutions from 30 m³/h to 240+ m³/h. Polygonmachine is a trusted partner in both compact and large-scale projects.
What batching plant types are available?
Stationary, mobile, and compact plants—plus cement silos, feeders, and dosing units. Every system is customizable to match your space, capacity, and automation needs.
How is long-term support handled?
Polygon Machine ensures fast setup, training, and after-sales service, minimizing downtime. All plants include modern automation and safety features for easy, efficient use.
Technical Specifications
| Model | Capacity (m³/h) | Mixer Type | Mixer Capacity (m³) | Power (kW) | Aggregate Weighing (kg) | Cement Weighing (kg) | Water Weighing (lt) | Additive Weighing (lt) |
|---|
| PAC-60 | 60 | Twin Shaft / Planetary | 1.0 | 45 | 3,000 | 600 | 300 | 20 |
| PAC-100 | 100 | Twin Shaft / Planetary | 2.0 | 75 | 6,000 | 1,200 | 600 | 50 |
| PAC-120 | 120 | Twin Shaft | 3.0 | 90 | 9,000 | 1,800 | 900 | 50 |
Key Features
Dual Configuration Design:
Available in both mobile and stationary setups, the PAC Series adapts to all project types — from temporary construction sites to permanent industrial operations.
Quick Installation and Mobility:
Fully pre-assembled modules, pre-wired systems, and hydraulic folding mechanisms allow installation in less than one day without major civil foundations.
High-Precision Automation System:
Controlled by PolySmart™ PLC, offering real-time weighing, mixing control, and automatic data logging with ±1% dosing accuracy.
Heavy-Duty Mixer Construction:
Equipped with high-performance twin-shaft or planetary mixers for uniform and fast concrete mixing under demanding site conditions.
Integrated Power and Water Systems:
On-site compatible design with optional diesel generators, water tanks, and compressors ensures autonomous operation in remote locations.
Durable and Modular Structure:
Built from high-tensile steel frames and corrosion-resistant components for long-term use and quick relocation.
Smart Maintenance Access:
Wide service platforms, ground-level access points, and centralized lubrication simplify maintenance operations.
Performance
-
Production Capacity: 60–120 m³/h
-
Batching Accuracy: ±1% for aggregates, ±0.5% for liquids
-
Batch Cycle Time: 60–75 seconds
-
Setup Time: Less than 1 day
-
Automation: PolySmart™ PLC + HMI Touchscreen Interface
-
Energy Consumption: 0.4–0.6 kWh/m³
Applications
-
Infrastructure Projects: Bridges, tunnels, airports, dams, and railways requiring on-site concrete supply.
-
Remote Construction Sites: Ideal for mining, energy, and pipeline projects.
-
Ready-Mix Producers: Temporary or regional production points with high demand.
-
Precast and Civil Works: Continuous and controlled production for structural components.
Advantages
-
Mobile or stationary use for all project scales
-
High-performance concrete output with consistent quality
-
Quick installation and dismantling for project mobility
-
Fully automated control with precise dosing and data monitoring
-
Minimal maintenance requirements and long operational life
