Polygonmachine PTJ Series Track-Mounted Jaw Crushers
Polygonmachine PTJ Series Track-Mounted Jaw Crushers

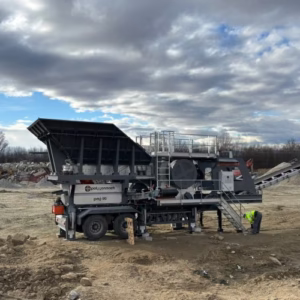

Polygonmachine PTJ Series Track-Mounted Jaw Crushers are engineered for high-capacity primary crushing operations directly at the worksite. Combining the strength of traditional jaw crushers with the flexibility of a mobile, track-mounted system, the PTJ series delivers maximum productivity, easy mobility, and outstanding reliability for quarrying, mining, and recycling applications.
Technical Specifications
| Model | Feed Opening (mm) | Max Feed Size (mm) | Power (kW) | Jaw Speed (rpm) | Capacity (tph) | Transport Weight (t) | |
|---|---|---|---|---|---|---|---|
| PTJ-60 | 610×380 | 300 | 90 | 300 | 60–120 | 22 | |
| PTJ-90 | 900×650 | 550 | 132 | 270 | 100–200 | 33 | |
| PTJ-110 | 1100×900 | 750 | 160 | 225 | 180–320 | 45 | |
| PTJ-130 | 1300×1000 | 850 | 200 | 220 | 300–500 | 55 | |
| PTJ-140 | 1400×1100 | 930 | 250 | 220 | 400–650 | 62 |
Key Features
-
Heavy-Duty Non-Welded Frame: Modular bolted design with high-quality castings ensures maximum durability and longevity under the heaviest loads.
-
Hydraulic Wedge Adjustment: Quick, precise control of the closed side setting (CSS) with simple push-button operation for consistent output.
-
Optimized Nip Angle: Guarantees smooth material intake and high reduction ratios, increasing throughput and efficiency.
-
High-Strength Eccentric Shaft: Precision CNC-machined for superior reliability and long operational life.
-
Replaceable Jaw Liners: Multiple liner configurations allow adaptation to various rock types and crushing requirements.
-
Integrated Safety Features: Built-in lifting points and hydraulic tramp relief protect against overloads and uncrushable materials.
-
Efficient Drive System: Large flywheels and high-strength toggle plates ensure stable operation and high crushing force.
-
Track-Mounted Mobility: Robust crawler chassis allows easy movement on rugged terrain and rapid setup without civil foundations.
-
Dust Suppression System: Onboard water sprays reduce dust emissions during operation.
Performance
-
Crushing Type: Primary compression
-
Reduction Ratio: Up to 1:10
-
CSS Range: 40–250 mm (adjustable)
-
Energy Consumption: 0.5–0.8 kWh/ton
-
Operating Noise Level: <80 dB(A)
-
Travel Speed: 1–1.5 km/h
-
Setup Time: <30 minutes
Automation and Control
Equipped with PolySmart™ Mobile Control System, offering:
-
Digital monitoring of motor load, pressure, and oil temperature
-
Hydraulic CSS adjustment and overload alarm
-
Automatic lubrication and fault diagnostics
-
Remote start/stop and system health reporting
-
Touchscreen HMI for user-friendly control.
Applications
-
Quarrying: Primary reduction of hard and abrasive stones.
-
Mining: Crushing of ore and overburden directly in the pit.
-
Recycling: Processing of reinforced concrete, demolition waste, and asphalt.
-
Construction Projects: On-site aggregate production for roads and infrastructure.
-
Industrial Use: Feed preparation for secondary and tertiary crushing stages.
Advantages
-
Complete mobility with powerful crushing capability
-
Fast relocation between job sites without foundation work
-
Low operating cost and simplified maintenance access
-
Uniform, high-quality output product
-
Reliable performance even in demanding conditions
-
Fully integrated electrical and hydraulic systems
