POLYGON MACHINE
MORTAR CONCRETE MIXERS AND MIXING EQUIPMENTS
Polygonmachine PMX Series Mortar Concrete Mixers and Mixing Equipments are designed for high-performance, precision, and durability in concrete and mortar production.
Covering a full range of mixer technologies — Single Shaft Mixers, Pan Mixers, Planetary Mixers, Twin Shaft Mixers, and Cone Mixers for 3D Concrete Applications — the PMX Series offers optimal mixing solutions for every production scale and concrete type.
Why choose Polygon Machine?
Polygon Machine delivers certified quality (TSE & ISO 9001), global expertise, and durable solutions from 30 m³/h to 240+ m³/h. Polygonmachine is a trusted partner in both compact and large-scale projects.
What batching plant types are available?

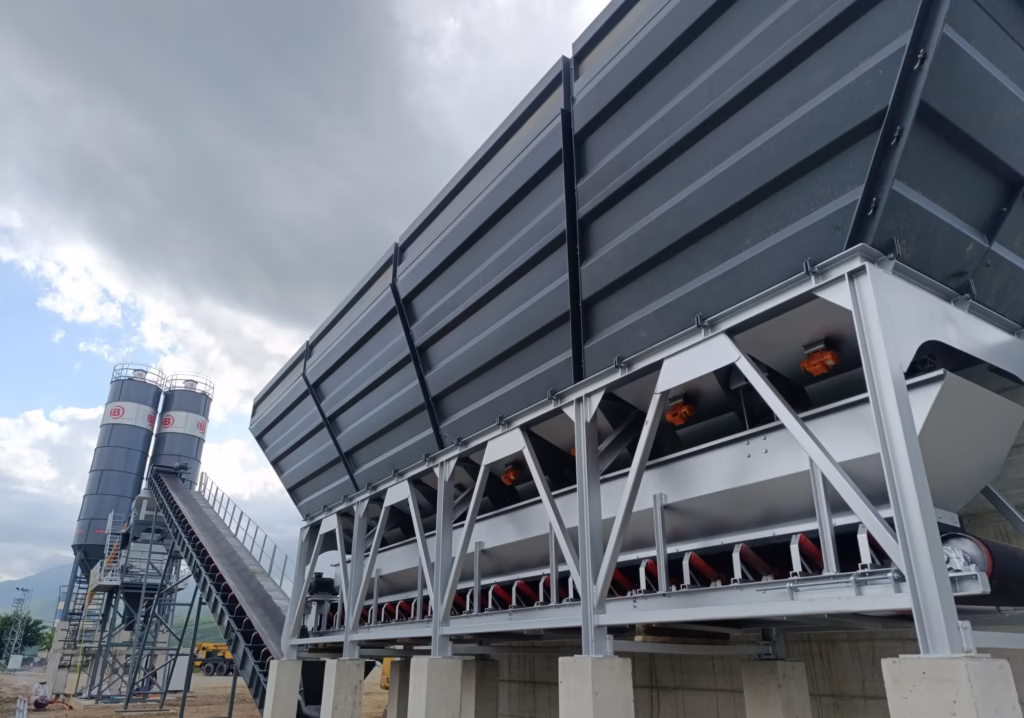

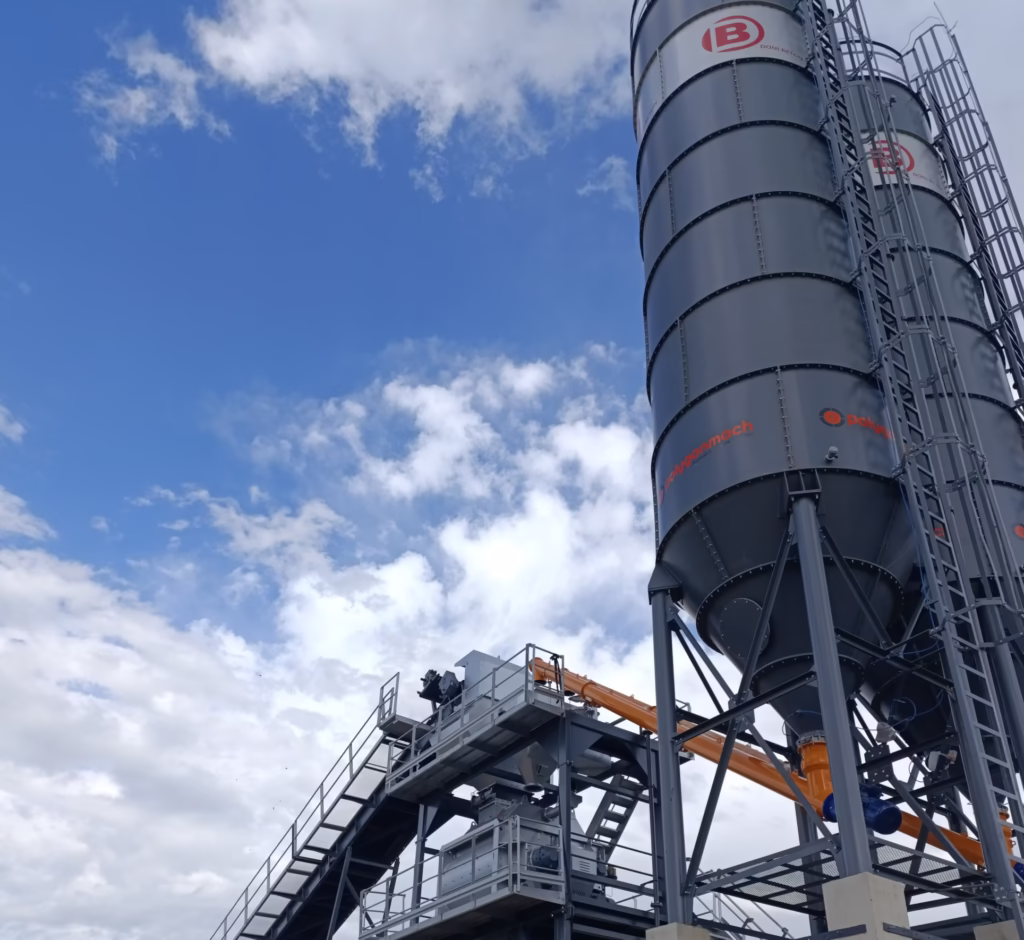

Stationary, mobile, and compact plants—plus cement silos, feeders, and dosing units. Every system is customizable to match your space, capacity, and automation needs.
How is long-term support handled?
Polygon Machine ensures fast setup, training, and after-sales service, minimizing downtime. All plants include modern automation and safety features for easy, efficient use.
Technical Specifications
| Mixer Type | Model | Capacity (m³) | Power (kW) | Mixing Speed (rpm) | Max Aggregate Size (mm) | Mixing Time (sec) |
|---|
| Single Shaft Mixer | PMX-SSM-1000 | 1.0 | 37 | 25–35 | 60 | 45–60 |
| Twin Shaft Mixer | PMX-TSM-3000 | 3.0 | 90 | 30–40 | 80 | 30–45 |
| Planetary Mixer | PMX-PLM-1500 | 1.5 | 55 | 20–35 | 50 | 45–60 |
| Pan Mixer | PMX-PNM-1000 | 1.0 | 45 | 25–40 | 40 | 45–75 |
| Cone Mixer (3D Concrete) | PMX-CNM-0500 | 0.5 | 30 | Variable | 20 | 60–90 |
Key Features
Advanced Mixing Technology:
Each mixer is designed to achieve homogenous mixing with optimized turbulence and flow patterns for all concrete grades, from dry to self-compacting and 3D printable materials.
Single Shaft Mixers:
Engineered for fast mixing cycles and easy maintenance. Ideal for standard ready-mix and low-slump concrete applications.

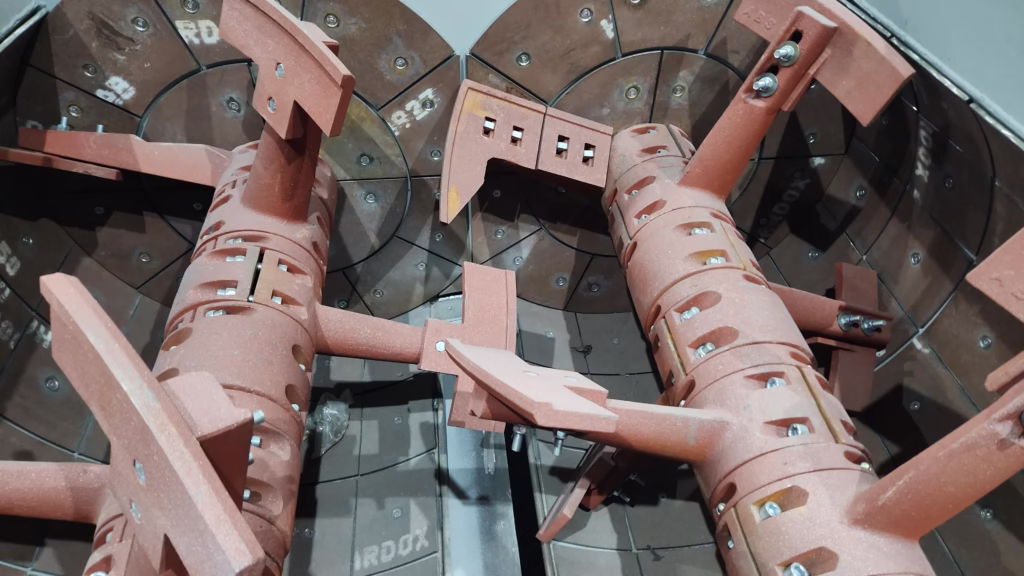

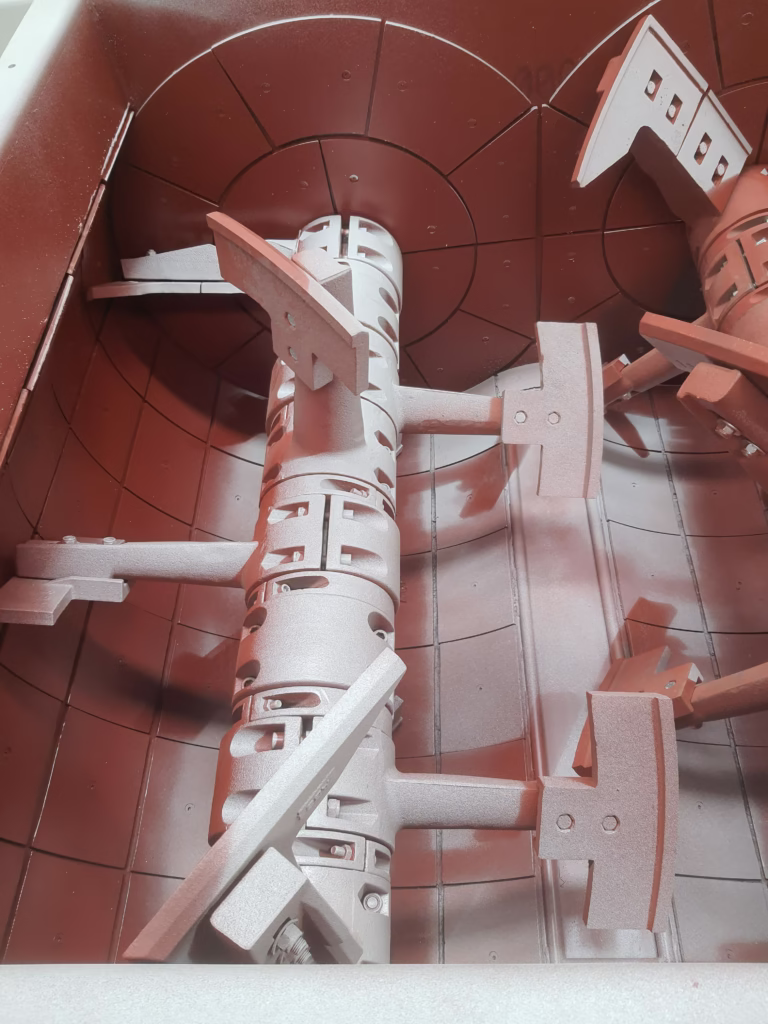

Twin Shaft Mixers:
Provide high-intensity mixing and superior homogeneity. Reinforced shafts and wear liners ensure reliable operation under heavy-duty conditions.
Planetary Mixers:
Offer multi-directional mixing motion for high-precision mortar, colored concrete, and precast applications requiring consistent quality and color distribution.
Pan Mixers:
Designed for flexible mixing operations in laboratory, precast, and mortar production where short cycles and high shear force are required.
Cone Mixers for 3D Concrete:
Specially developed for new-generation construction technologies, these mixers enable consistent extrusion-ready mixes for 3D printing systems with variable viscosity control.
Heavy-Duty Construction:
High-tensile steel body, replaceable wear plates, and chromium-coated blades ensure long service life with minimal maintenance.
Integrated Water and Additive Dosing:
Automatic dosing nozzles and flow meters controlled by PolySmart™ PLC guarantee precise water-to-cement ratios.
Easy Maintenance Access:
Large inspection hatches, central lubrication system, and quick-release shaft seals reduce downtime.
Performance
-
Mixing Efficiency: Up to 98% homogeneity in under 60 seconds
-
Mix Consistency: ±1% variation per batch
-
Energy Consumption: 0.4–0.6 kWh/m³
-
Maintenance Interval: Every 1000 cycles (average)
-
Automation: PolySmart™ PLC + HMI touch interface
Applications
-
Ready-Mix Concrete Production: High-speed, uniform concrete for commercial batching plants.
-
Precast Concrete Plants: Precision mixing for structural elements and decorative products.
-
Mortar and Grout Production: Fine material blending for industrial and civil applications.
-
3D Concrete Printing: Advanced cone mixers for digitally controlled extrusion systems.
-
Specialty Mixes: Suitable for fiber-reinforced, colored, and self-compacting concretes.
Advantages
With high-capacity mixers, optimized material flow, and minimized downtime, Polygon Machine batching plants are built for continuous, high-output performance.
Designed to shorten project timelines and accelerate concrete delivery, they offer unmatched productivity for infrastructure and precast applications.
Their scalable configurations also allow for simultaneous multi-project supply, increasing operational flexibility.
