POLYGON MACHINE
STATIONARY CONCRETE
BATCHING PLANTS

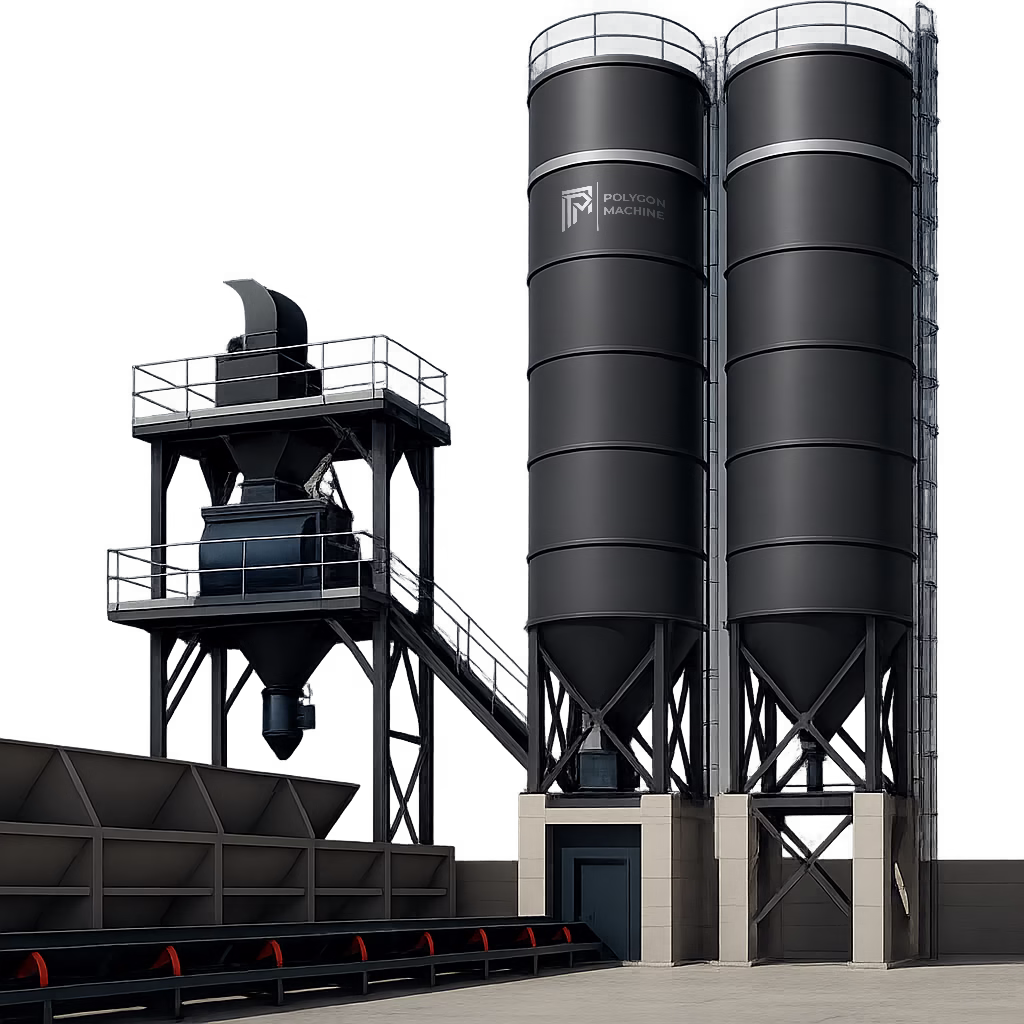

Polygonmachine PCS Series Stationary Concrete Batching Plants are engineered for long-term, high-capacity concrete production in industrial, infrastructure, and ready-mix applications.
Combining precise weighing technology, durable construction, and advanced automation, the PCS Series ensures consistent, high-quality concrete production under continuous operation.
Why choose Polygon Machine?
Polygon Machine delivers certified quality (TSE & ISO 9001), global expertise, and durable solutions from 30 m³/h to 240+ m³/h. Polygonmachine is a trusted partner in both compact and large-scale projects.
What batching plant types are available?
Stationary, mobile, and compact plants—plus cement silos, feeders, and dosing units. Every system is customizable to match your space, capacity, and automation needs.
How is long-term support handled?
Polygon Machine ensures fast setup, training, and after-sales service, minimizing downtime. All plants include modern automation and safety features for easy, efficient use.
Technical Specifications
| Model | Capacity (m³/h) | Mixer Type | Mixer Capacity (m³) | Power (kW) | Aggregate Weighing (kg) | Cement Weighing (kg) | Water Weighing (lt) | Additive Weighing (lt) |
|---|
| PCS-60 | 60 | Twin Shaft / Planetary | 1.0 | 45 | 3,000 | 600 | 300 | 20 |
| PCS-100 | 100 | Twin Shaft / Planetary | 2.0 | 75 | 6,000 | 1,200 | 600 | 50 |
| PCS-120 | 120 | Twin Shaft | 3.0 | 90 | 9,000 | 1,800 | 900 | 50 |
| PCS-160 | 160 | Twin Shaft | 4.0 | 110 | 12,000 | 2,400 | 1,200 | 50 |
| PCS-200 | 200 | Twin Shaft | 5.0 | 132 | 15,000 | 3,000 | 1,500 | 50 |
Key Features
Features
High-Capacity Design:
Capable of producing up to 200 m³/h of ready-mix concrete with exceptional accuracy and homogeneity.
Precision Weighing and Control System:
All weighing processes for aggregates, cement, water, and additives are managed via the PolySmart™ PLC system, ensuring ±1% dosing accuracy.
Durable Mixer Options:
Available with high-performance twin-shaft or planetary mixers designed for intensive operation and long lifespan.
Customizable Aggregate Storage:
Configurable with 4 to 12 aggregate bins and optional pre-feeding systems for maximum flexibility and efficiency.
Robust Structural Construction:
Heavy-duty steel chassis and reinforced foundations guarantee stability and durability in continuous production environments.
Easy Maintenance and Access:
Wide service platforms, inspection ladders, and accessible maintenance zones provide safe and efficient upkeep.
Optional Heating and Recycling Systems:
Can be equipped with aggregate heating, grey water recycling, and fiber dosing systems for improved sustainability and performance in all climates.
Performance
Production Range: 60–200 m³/h
Mixing Accuracy: ±1% for aggregates and ±0.5% for liquids
Batch Cycle Time: 60–90 seconds
Automation System: PolySmart™ PLC + Touchscreen HMI
Operating Temperature Range: −25°C to +55°C
Energy Consumption: 0.4–0.6 kWh/m³
Applications
Ready-Mix Concrete Plants: Continuous production for urban and industrial projects.
Infrastructure Projects: Bridges, tunnels, airports, and highways requiring consistent concrete output.
Precast Concrete Plants: High-precision concrete batching for structural elements.
Large Construction Sites: Stationary installations for long-term mass production.
Applications
Consistent and high-quality concrete output
Automated and reliable control system
Long service life with minimal maintenance
Fully customizable layout and capacity options
Environmentally responsible with recycling integration
