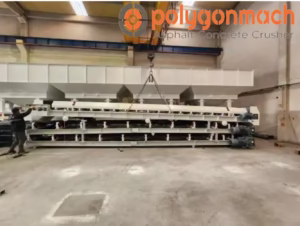

Polygonmachine PADC Series Automatic Distribution Conveyors
Polygonmachine PADC Series Automatic Distribution Conveyors
Polygonmachine PADC Series Automatic Distribution Conveyors are designed to automate material distribution and feeding in aggregate, mining, and concrete production facilities.
These conveyors combine high precision, durable mechanics, and intelligent control systems to distribute bulk materials to multiple destinations — silos, hoppers, or processing lines — with minimal human intervention and maximum efficiency.
Technical Specifications
| Model | Belt Width (mm) | Length (m) | Capacity (tph) | Power (kW) | Control Type | Weight (kg) |
|---|---|---|---|---|---|---|
| PADC-600 | 600 | 25 | 250 | 11 | PLC Controlled | 4,500 |
| PADC-800 | 800 | 30 | 350 | 15 | PLC Controlled | 5,600 |
| PADC-1000 | 1000 | 35 | 500 | 18.5 | PLC + Sensors | 6,700 |
| PADC-1200 | 1200 | 40 | 700 | 22 | PLC + Sensors | 8,200 |
| PADC-1400 | 1400 | 45 | 900 | 30 | Full Automation | 9,400 |
Key Features
Automated Distribution System:
Equipped with a programmable PLC-based system that automatically adjusts direction, flow rate, and discharge points to distribute material evenly across multiple storage bins or silos.
Rotating or Swing Discharge Design:
Optional rotating head or swing arm system for directing materials to multiple points without manual repositioning, ideal for batch-type operations.
Variable Speed and Flow Control:
Frequency inverter drives allow precise adjustment of belt speed for accurate material feeding, improving efficiency and product consistency.
Integrated Sensors:
Ultrasonic level sensors monitor fill levels in real time, optimizing material flow and preventing overloading or spillage.
Energy-Efficient Operation:
Low-friction rollers and high-efficiency motors minimize energy consumption during continuous duty cycles.
Heavy-Duty Construction:
Robust steel chassis and abrasion-resistant belt materials ensure long-term reliability even under demanding industrial conditions.
Modular Design:
Easy-to-install modular sections reduce assembly time and simplify maintenance.
Smart Safety Features:
Includes emergency stop circuits, overload protection, belt tracking sensors, and automatic shut-off in case of blockages.
Performance
-
Conveying Speed: 0.8–2.5 m/s adjustable
-
Distribution Accuracy: ±2% per load cycle
-
Operational Mode: Manual / Semi-Automatic / Fully Automatic
-
Cycle Time: 20–60 seconds depending on configuration
-
Control System: PolySmart™ PLC with touchscreen HMI interface
-
Power Efficiency: 0.25–0.45 kWh/ton
-
Noise Level: Below 75 dB(A)
Applications
-
Concrete Batching Plants: Automatic distribution of sand, aggregates, and cement to multiple storage silos.
-
Aggregate Handling Systems: Feeding materials from central hoppers to multiple conveyors or stockpiles.
-
Mining Operations: Controlled transfer of ore or minerals to crushers or sorting lines.
-
Ports & Terminals: Automated loading of vessels, trucks, or storage yards.
-
Recycling Facilities: Sorting and transferring various material streams automatically.
