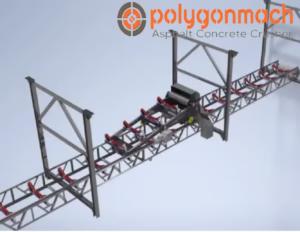

Polygonmachine PSC Series Skipper Conveyors
Polygonmachine PSC Series Skipper Conveyors
Polygonmachine PSC Series Skipper Conveyors are engineered to transport materials vertically or at steep angles between different plant levels, particularly within concrete batching, aggregate handling, and mineral processing facilities.
These conveyors are designed for precision, durability, and space efficiency — offering a reliable vertical lifting solution for coarse or fine aggregates, sand, gravel, and similar bulk materials.
Technical Specifications
| Model | Bucket Volume (m³) | Lifting Height (m) | Capacity (tph) | Power (kW) | Chain Type | Weight (kg) |
|---|---|---|---|---|---|---|
| PSC-05 | 0.5 | 6 | 60–80 | 15 | Double Chain | 6,800 |
| PSC-07 | 0.7 | 8 | 80–100 | 18.5 | Double Chain | 7,200 |
| PSC-10 | 1.0 | 10 | 100–150 | 22 | Dual Wire Rope | 8,500 |
| PSC-12 | 1.2 | 12 | 120–180 | 30 | Dual Wire Rope | 9,200 |
| PSC-15 | 1.5 | 15 | 150–220 | 37 | Dual Wire Rope | 10,500 |
Key Features
Compact Vertical Design:
Optimized for plants with limited space, the vertical lifting configuration minimizes floor footprint while maximizing material transfer efficiency.
Robust Lifting Mechanism:
Heavy-duty dual chain or steel rope system ensures stable, vibration-free movement even under full load conditions.
Precision Skipping Bucket:
Fabricated skip bucket with reinforced edges and self-dumping system allows safe, controlled discharge at the upper point.
Hydraulic or Electromechanical Drive:
Depending on plant setup, the system can be configured for hydraulic or electric lifting with soft-start control.
Integrated Safety Systems:
Includes anti-drop brake, limit switches, and overload protection for safe, reliable operation.
Smooth Loading and Discharge:
Automatic positioning sensors ensure synchronized feeding from mixers, silos, or hoppers with minimal spillage.
Durable Frame Construction:
High-tensile welded structure and wear-resistant liners guarantee long service life in continuous operation.
Low Maintenance Access:
Removable side covers, centralized lubrication points, and inspection ports simplify routine maintenance.
Performance
-
Lifting Speed: 0.25–0.5 m/s adjustable
-
Cycle Time: 45–60 seconds (depending on height and load)
-
Energy Consumption: 0.35–0.55 kWh/ton
-
Max Inclination: 70°–90° (vertical)
-
Noise Level: Below 78 dB(A)
-
Operational Duty: Continuous or batch mode operation
Applications
-
Concrete Batching Plants: Vertical transfer of aggregates to mixers or storage bins.
-
Aggregate Handling Systems: Lifting crushed stone, sand, and gravel to higher levels.
-
Mining and Quarrying: Compact material lifting where inclined conveyors are impractical.
-
Industrial Plants: Transfer of dry bulk materials in compact process layouts.
-
Recycling Facilities: Feeding crushers or sorters positioned at elevated levels.
